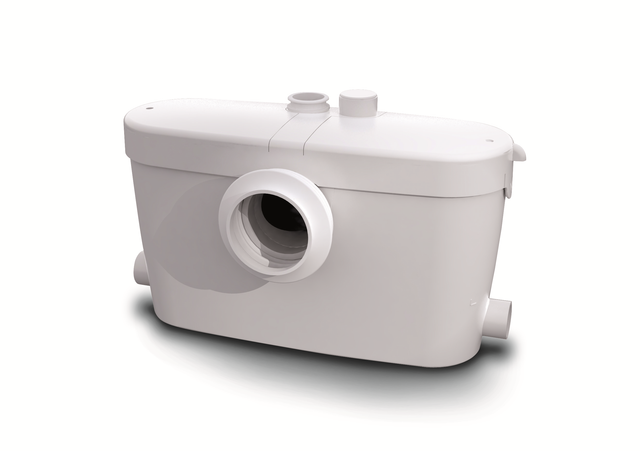

Saniaccess 3 Macerating Pump

The Saniaccess3 is a top pick for residential bathrooms, delivering outstanding performance at a budget-friendly price. Ideal for a full bathroom setup, it handles a toilet, sink, and shower or bathtub with ease. Its robust 0.5 HP motor pumps wastewater up to 15 feet vertically or 150 feet horizontally through a 3/4 or a 1-inch discharge pipe. Unique easy-access panels allow maintenance without disconnecting the pump, making it a standout choice.

Pump Specifications

• Part # 082 Saniaccess 3 Macerator Pump
• Dimensions (L x H x D): 18 3/4" x 10 3/4" x 6 3/4"
• Discharge Pipe Diameter: 3/4"
• Discharge Rate at Max Height: 27 gallons per minute
• Electrical Supply: 115 V / 60 Hz
• Horizontal Discharge: Up to 150 feet
• Vertical Discharge: Up to 15 feet
• Maximum Fluid Temperature: 104°F
• Motor Speed: 3600 RPM, tested over 50,000 cycles
• Water Consumption: 1.28 gallons per flush

Note: The Sanialarm is not compatible with the Saniaccess3.

Resources:

• Download The Installation Manual
• Download The Spec Sheet
• Download The CSA Certification
• Doanload The IAPMO Certification
