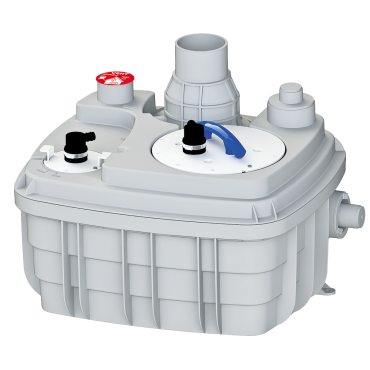

Saniflo Sanicubic 1 VX Vortex Lift Station (1.5 HP, 240V)

The Saniflo Sanicubic 1 VX Vortex Lift Station is a powerful and reliable wastewater pumping system designed for residential and light commercial applications. Featuring advanced vortex impeller technology, this system creates a swirling action that keeps solids suspended and away from the impeller—helping reduce clogging and improve long-term performance.

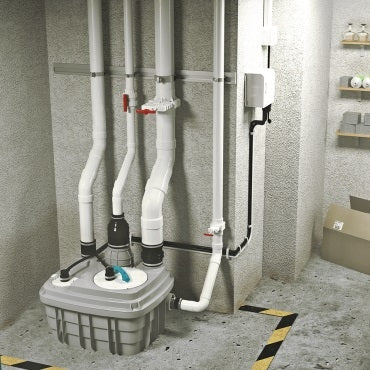

Powered by a 1.5 HP, 240V oil-filled induction motor, the Sanicubic 1 VX delivers strong pumping capability for both vertical and horizontal discharge. It is an ideal solution for pool houses, tiny homes, additions, and commercial living spaces where gravity drainage is not possible.

Performance & Technical Specifications

• Motor: 1.5 HP, 240V, 60Hz oil-filled induction motor

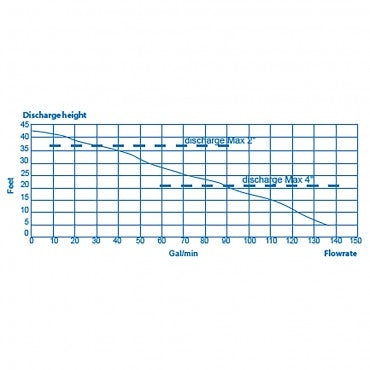

• Max Vertical Discharge: Up to 36 ft (2" pipe) / 20 ft (4" pipe)
• Max Horizontal Discharge: Up to 328 ft (2") / 1,640 ft (4")
• Flow Rate: 125 GPM (2") / 137 GPM (4")
• Discharge Options: 2" or 4" for flexible installation
• Inlet Ports: Three inlets (1.5" or 4") for multiple fixtures
• Impeller Type: Vortex system for clog-resistant performance
• Protection Rating: IP68 (fully sealed, water-resistant design)

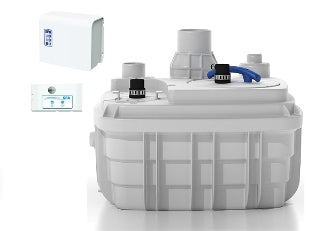

• Control System: External alarm and control panel included
• Service Access: Top access for easy maintenance and servicing

Resources:

• Download the Installation Manual
• Download the User Manual
• Download the CSA Certification
• Download the IAPMO Certification
