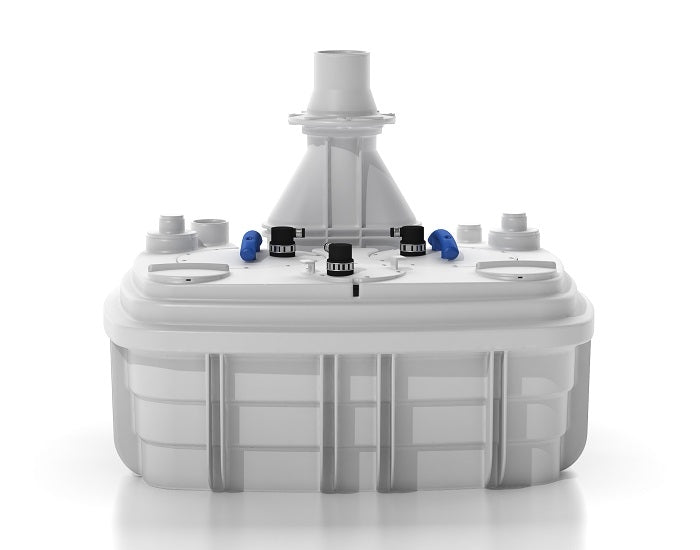

Saniflo Sanicubic 2 VX Vortex System

Need serious pumping power? The Sanicubic 2 VX is built for even the most demanding wastewater applications. With two 1.5 HP induction motors, it can move large volumes of wastewater over long distances, vertically or horizontally.

Its specially designed vortex impeller creates a swirling action that keeps solids away from the impeller as it turns. This reduces the chance of clogging and helps the system run reliably.

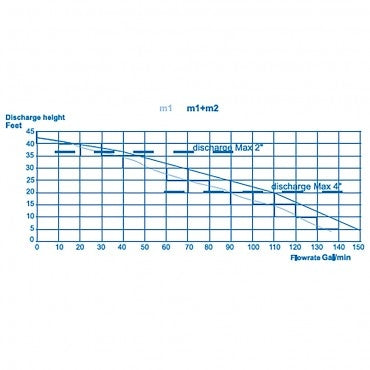

Performance

• Max vertical discharge: up to 36 ft (2" pipe) / 20 ft (4" pipe)
• Max horizontal discharge: up to 328 ft (2" pipe) / 1,640 ft (4" pipe)
• Flow rate (both motors, 3 ft of lift): 145 GPM (2") / 250 GPM (4")

Motor and construction

• Motors: two 1.5 HP, 240V, 60Hz oil-filled induction motors
• Impeller: vortex system for clog-resistant performance
• Protection rating: IP68, fully sealed

Installation and service

• Discharge options: 2" or 4" for flexible installation
• Inlets: five inlets (1.5" or 4") to connect multiple fixtures

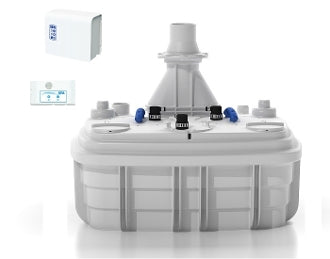

• Control system: external control panel and alarm included
• Service access: easy top access to the motors and switches

Size and shipping

This is a large, heavy item and ships on a pallet.

Not sure this is the right system? Call us at 603-379-8011 and we’ll help you choose the right fit for your project.

Download the complete Sanicubic Brochure: Sanicubic Brochure

Download the installation manual: Sanicubic 2 Vortex Installation Manual
