Saniflo Sanicubic 1 Grinder

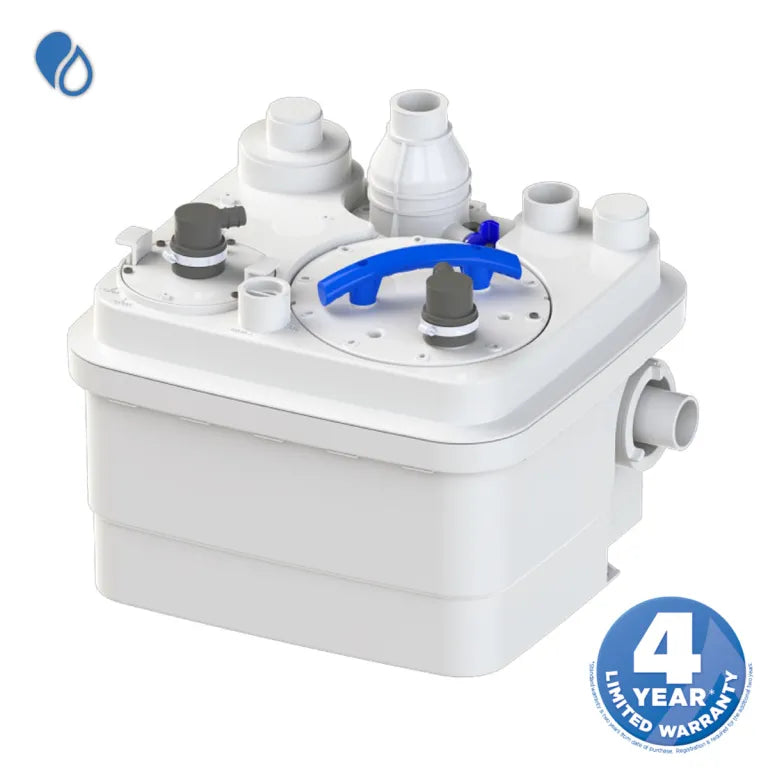

Saniflo Sanicubic 1 Grinder Lift Station – Part #089

The Saniflo Sanicubic 1 is a powerful 1 HP simplex grinder lift station designed to handle wastewater from multiple bathrooms and plumbing fixtures when conventional gravity drainage is not possible. Its compact, self-contained design provides an alternative to a traditional sewage ejector pit and is ideal for basements, additions, rental properties, offices, commercial spaces, garages and other demanding applications.

Equipped with a heavy-duty stainless-steel grinder blade, the Sanicubic 1 reduces solids before pumping wastewater through a compact 1-1/2" discharge line. The system can pump up to 36 feet vertically and/or 328 feet horizontally, with flow rates up to 50 GPM.

Multiple fixtures can connect to a single Sanicubic 1, including toilets, sinks, showers, bathtubs, washing machines and utility sinks. Four available inlet connections provide flexibility when designing the plumbing layout.

The Sanicubic 1 features an IP68-rated enclosure, automatic pressure-switch activation, an external control panel with visual alarm, and an oil-filled, thermally protected motor. The complete system arrives pre-assembled, eliminating the need for a conventional sewage ejector basin, separate float switches and associated pump components.

Key Features

• Powerful 1 HP Grinder Motor – Heavy-duty, oil-filled and thermally protected for demanding residential and commercial applications.
• Multiple Fixture Capability – Handles wastewater from multiple toilets, sinks, showers, tubs, washing machines and other compatible fixtures.
• Up to 50 GPM – High-capacity pumping performance for larger wastewater applications.
• 36 Ft Vertical / 328 Ft Horizontal – Provides flexibility when the sewer or septic connection is above or a considerable distance away.
• Heavy-Duty Grinder System – Stainless-steel cutting blade reduces solids before discharge.
• Four Inlet Connections – Accepts 1-1/2" or 4" connections for flexible plumbing configurations.
• Compact 1-1/2" Discharge – Allows wastewater to be pumped through smaller-diameter pressure piping.
• External Control Panel & Alarm – Provides operating controls and visual notification of a high-water condition.
• IP68-Rated Enclosure – Watertight construction provides additional protection in demanding installation environments.
• No Traditional Sewage Pit Required – Self-contained design installs above the floor and provides easier access for service.
• 4-Year Limited Warranty – Backed by Saniflo's manufacturer warranty.

Technical Specifications

Ideal Applications

Basement bathrooms • Multiple bathrooms • Rental properties • Offices • Warehouses • Workshops • Garages • Pool houses • Guest houses • Building additions • Commercial restrooms

Installation Notes

The Sanicubic 1 requires a properly installed two-way vent; air admittance valves (AAVs) or other one-way mechanical vents should not be used. Incoming gravity drainage should maintain the required slope, and isolation valves are recommended to make future servicing easier.

Because pump performance depends on vertical lift, horizontal distance, pipe size, fittings and incoming fixture flow, contact our Saniflo experts if you are unsure whether the Sanicubic 1 is correctly sized for your application.

The Sanicubic 1 has been certified to American and Canadian Standards. Macerating standard; US: CSA Certified & IAPMO (UPC) listed - ASME A112.3.4, CA: Macerating Standard CSA B45.9.,  Waterproof Enclosure IP68 Rated

Download the Installation manual:  Sanicubic 1 Manual

Download the Complete Spec Sheet: Sanicubic Specs

The Sanicubic 1 is ordered as a single unit only.  No other fixtures are included.  The Saniflo Rear Discharge Bowls will work with the Sanicubic unit and are available as a kit if necessary, just call to get a quote on the complete setup. 866-658-0505
